Direct Venting
This in-wall fireplace models venting connects to the top of the fireplace and can run out the wall or up through the roof. This fireplace uses 5×8″ direct vent pipes, to see what direct vent options there are just check out the features and accessories! Direct Vent fireplaces draw in fresh outside air to support combustion and exhaust combustion by-products to the outdoors, all this and it only requires a single hole through the wall or roof.
Inspiring Versatility

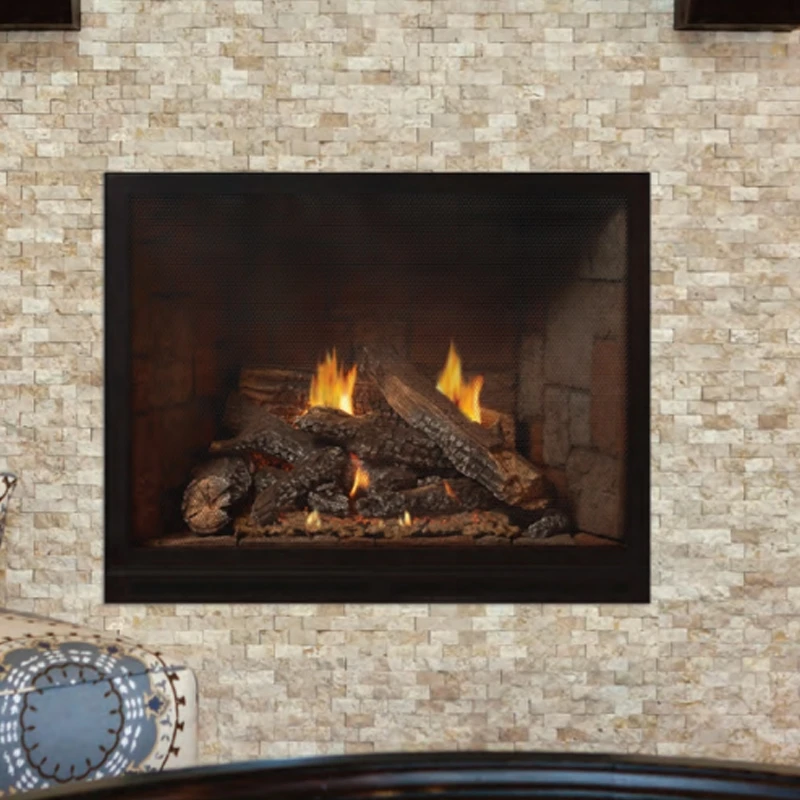

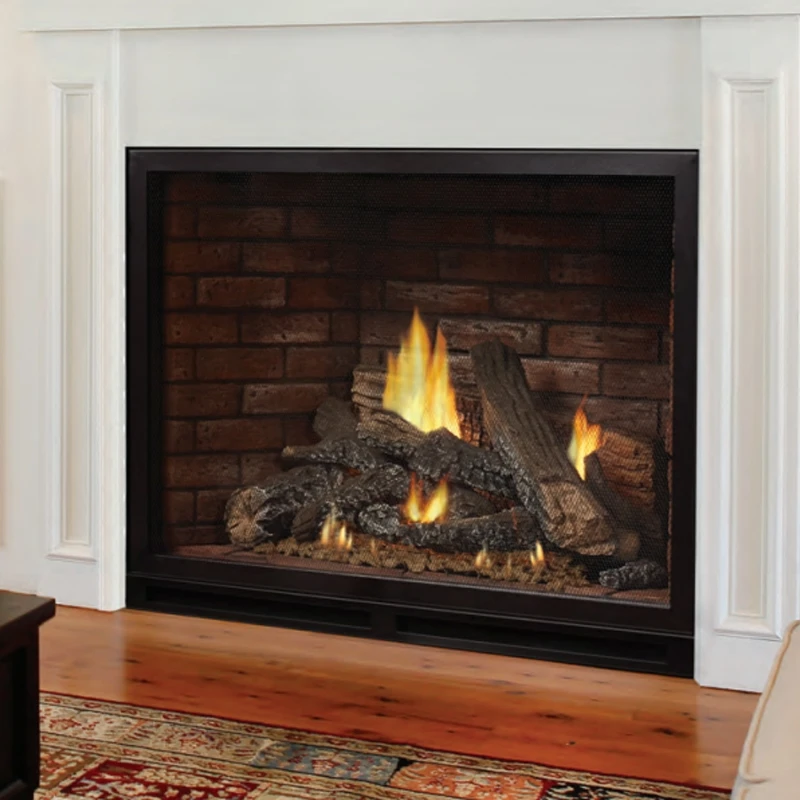

The ceramic glass view window has exceptional heat transfer and a unique burner that delivers a rich flame pattern. The 9-piece ceramic fiber log set is hand painted for stunning realism with detailed bark, knots, and charring. Required for installation is a liner, and this fireplace offers three unique possibilities. Want a classic look? Stick with the Cottage Brick Liner. However, for those who prefer a traditional aesthetic, Traditional Stone Liner is also available. Neither fits your needs? Go contemporary with the Black Porcelain Liner.
Multi-Function Remote or Millivolt Control
Choose between the Multi-Function Remote or Millivolt Control Series for your needs! The multi-function remote series includes a Variable Speed Blower and Lighting Kit and no remote is necessary for purchase. The Millivolt Control Series does not include those accessories but has an On/Off wall switch, with the option to add on a different hand-held control remote. Both of these models require a liner.
| Dimension | ADVCX42FP |
| A | 41.875 |
| B | 46.25 |
| C | 22.0625 |
| D | 27.50 |
| E | 39.9375 |
| F | 15.25 |
| G | 32.375 |
| H | 42.125 |
| I | 23.125 |
| J | 7.6875 |
| K | 2.00 |
| L | 4.50 |
| M | 10.875 |
| N | 24.00 |
| O | 36.875 |
| P | 14.375 |
| Q | 31.00 |
| R | 33.5625 |
| S | 1.00 |
Measurements given in inches
Framing Dimensions:
| Dimension | ADVCX42FP |
| A | 42.3125 |
| B | 46.375 |
| C | 21.50 |
Measurements given in inches
